Dynablast 12V 420,000 BTU Diesel Fired Heater Module

Specifications:

• BTU: 420,000
• Heat Rise: 5 GPM @ 120°F
• Fuel Consumption: 3.06 GPH (Beckett ADC 12V Burner)
• Coil Water Discharge: Top
• Pressure Gauge: Yes
• Temperature Gauge: Yes
• Electrical Requirements: 12 Volt
• Certification: ETL Certified

Models:

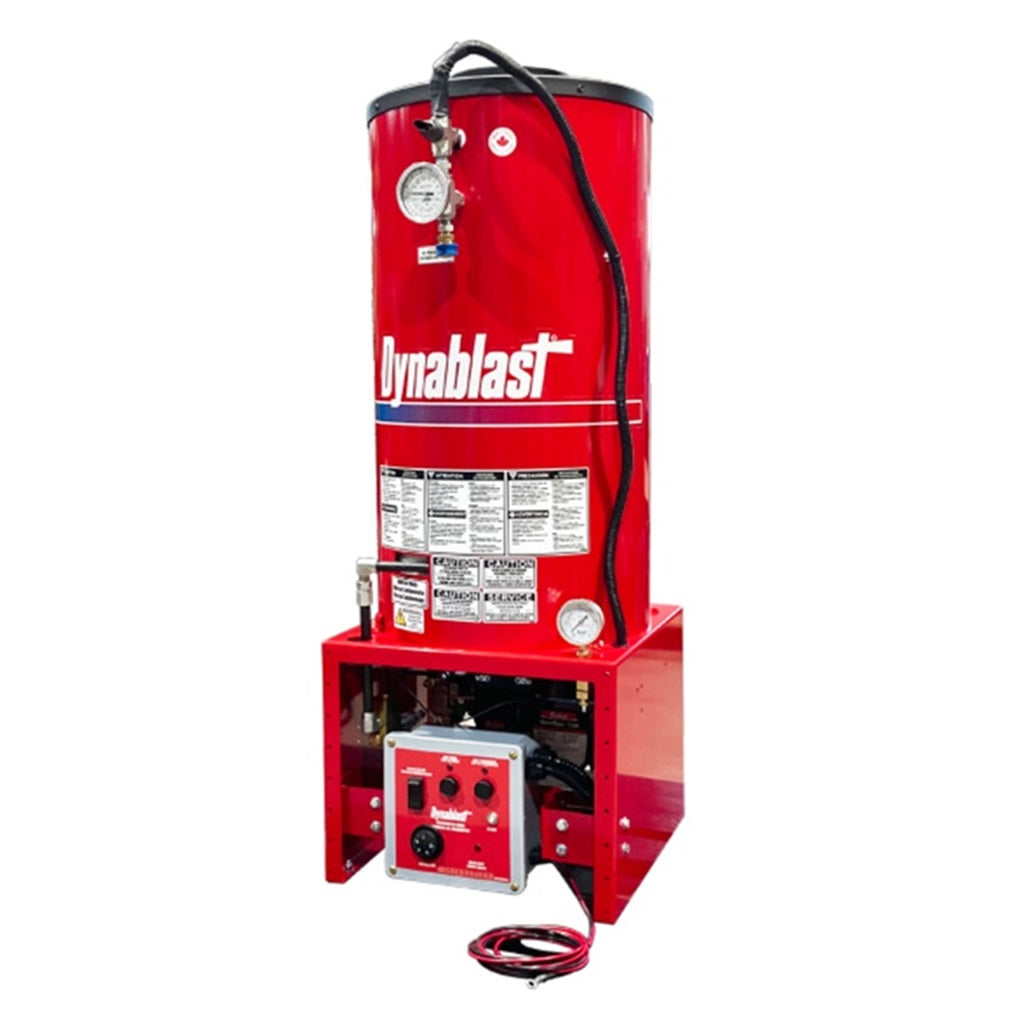

• HV420FLS-12VRED - Powder coated steel coil skin.
• HV420FLS-12V - Stainless coil skin, lower cabinet and hood for outdoor mounting.

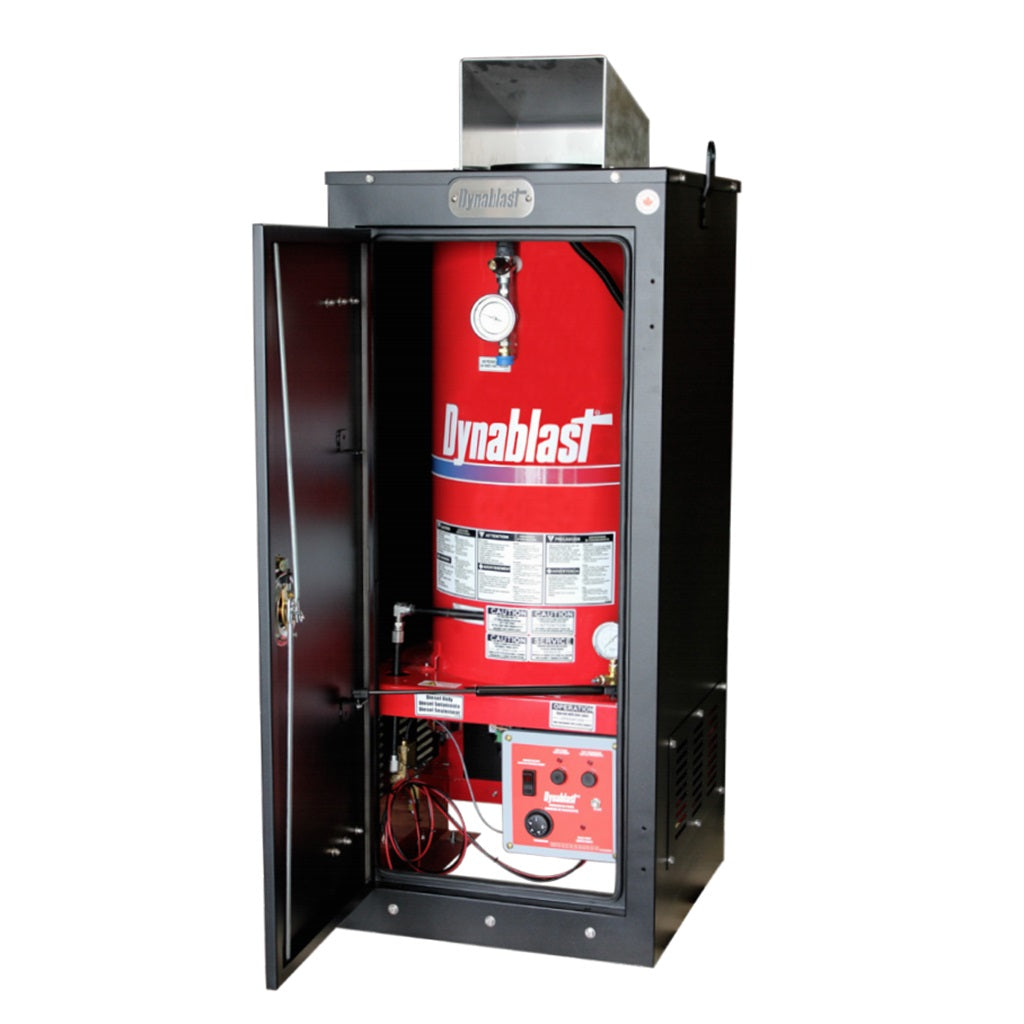

• CAB420FLS-12V - Full cabinet with multi-directional rain cap for direct mount on a truck and outdoor mounting.

Size:

• Dimensions: 19” x 19” x 51.75” H
• 19" x 20" x 59.75" H with cabinet and hood
• Weight: 375 lbs (380 lbs with lower cabinet / 485lbs with full cabinet and hood)

Rugged Design:

• Powder-coated paint finish for durability
• Multi-directional rain cap for weather protection
• 3/4" Schedule 80 coil construction for long-lasting performance
• High-pressure blow-off valve for system safety

Serviceability:

• Momentary test, flow, and thermostat controls for easy operation
• External controls for quick maintenance access

Safety Features:

• High-limit switch to prevent overheating
• Pressure safety valve for system protection
• Temperature and fuel pressure gauges for monitoring
• Factory-certified ETL design
