Description

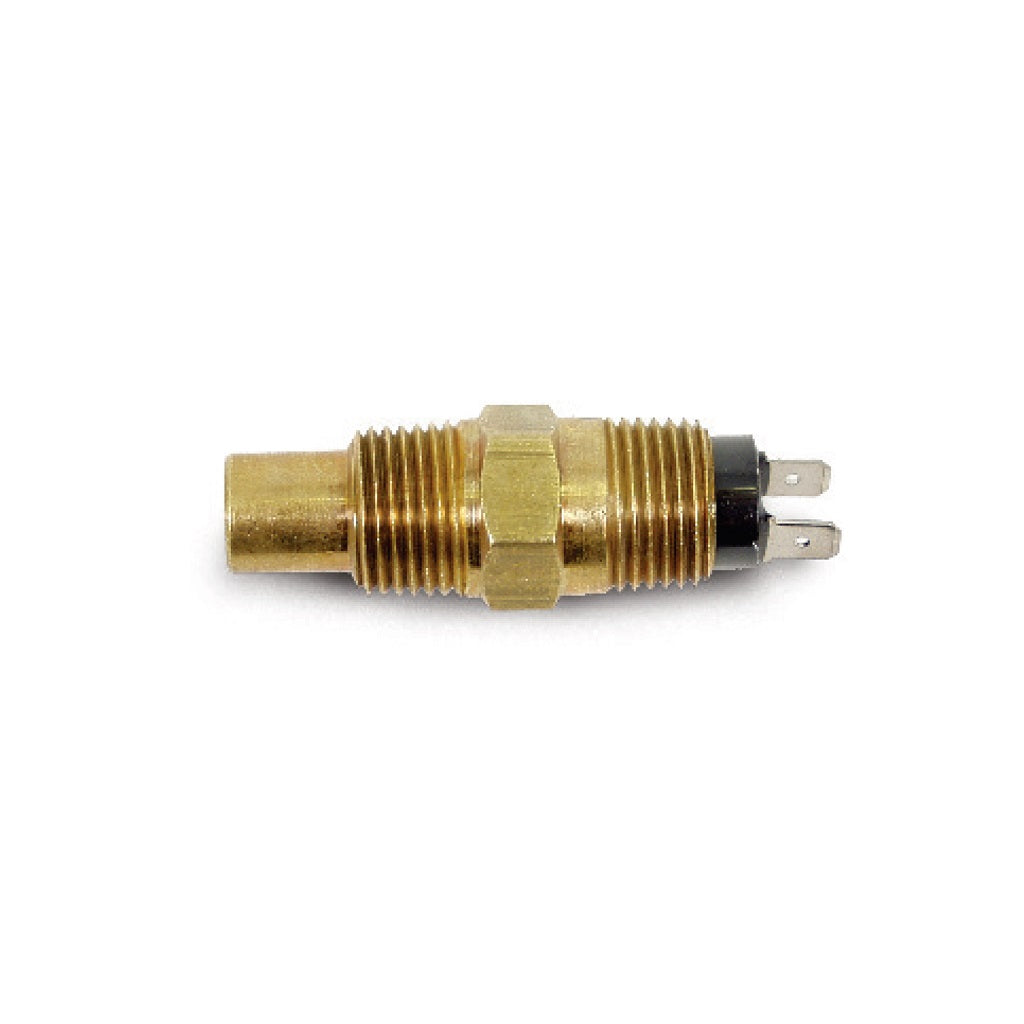

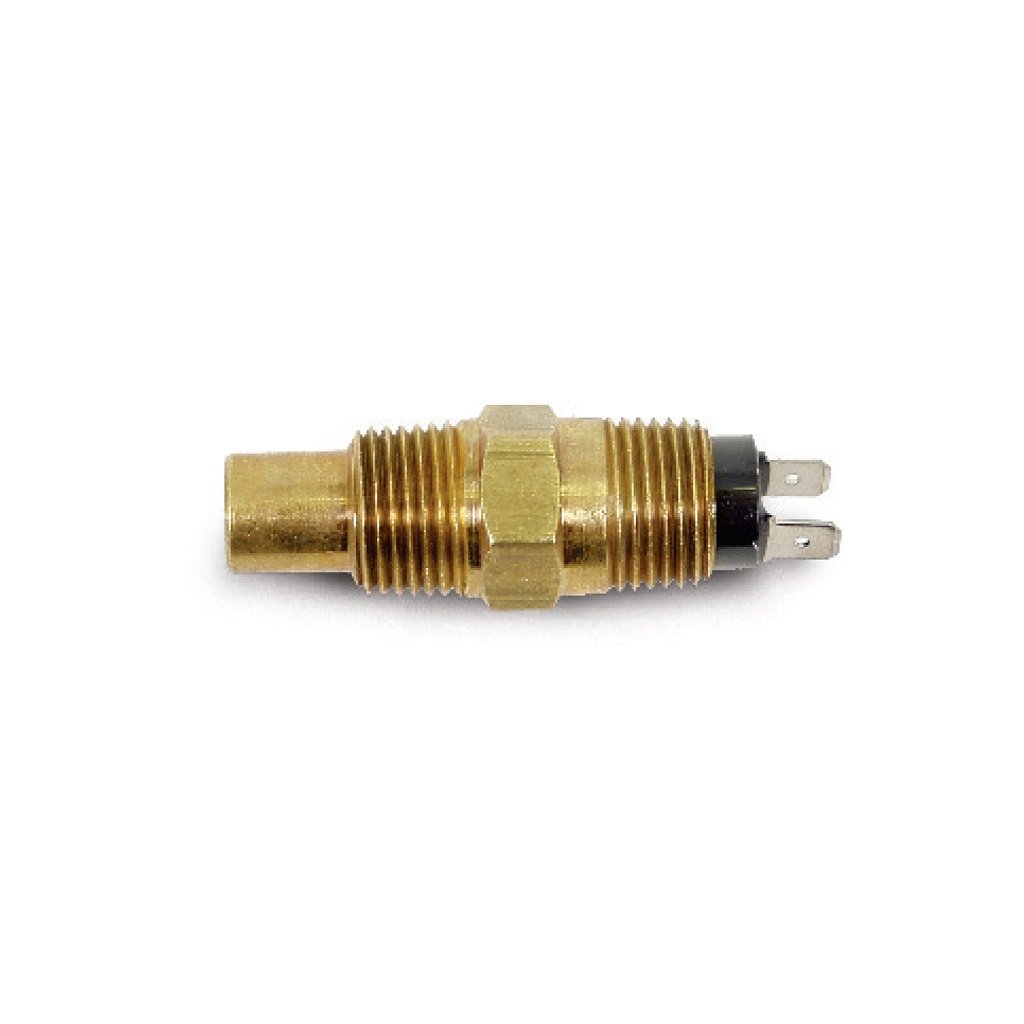

High Limit Switch 8.712-185.0 - 225°F Temperature
High Limit Switch 8.712-205.0 - 330°F Temperature
- 1/2" MPT Probe
- 42" Wire Lead
Operates as safety device to shut off burner to prevent machine (water) overheating flashing to steam
Does not turn back on until water has cooled 50°-70°F
Normally used with other adjustable or fixed range thermostat which regulates water temperature
15 Amp @110V/10 Amp @ 220V
Heavy-duty brass housing (7000 PSI collapse rating)
UL/CSA-rated, bimetal switch components
1/4" male spade lug terminals
1/2" MPT external thread connects for attaching conduit or PVC wire connectors
Temperature 225° Cross Reference Skus:
- 4-0509
- 411231
- 411233
- 411274
- 411277
- 7101230
- 87121850
- 87122970
- 87122990
- 87123100
- 87123120
Temperature 330° Cross Reference Skus:
- 4-0510
- 411331
- 87122050
- 87123150
