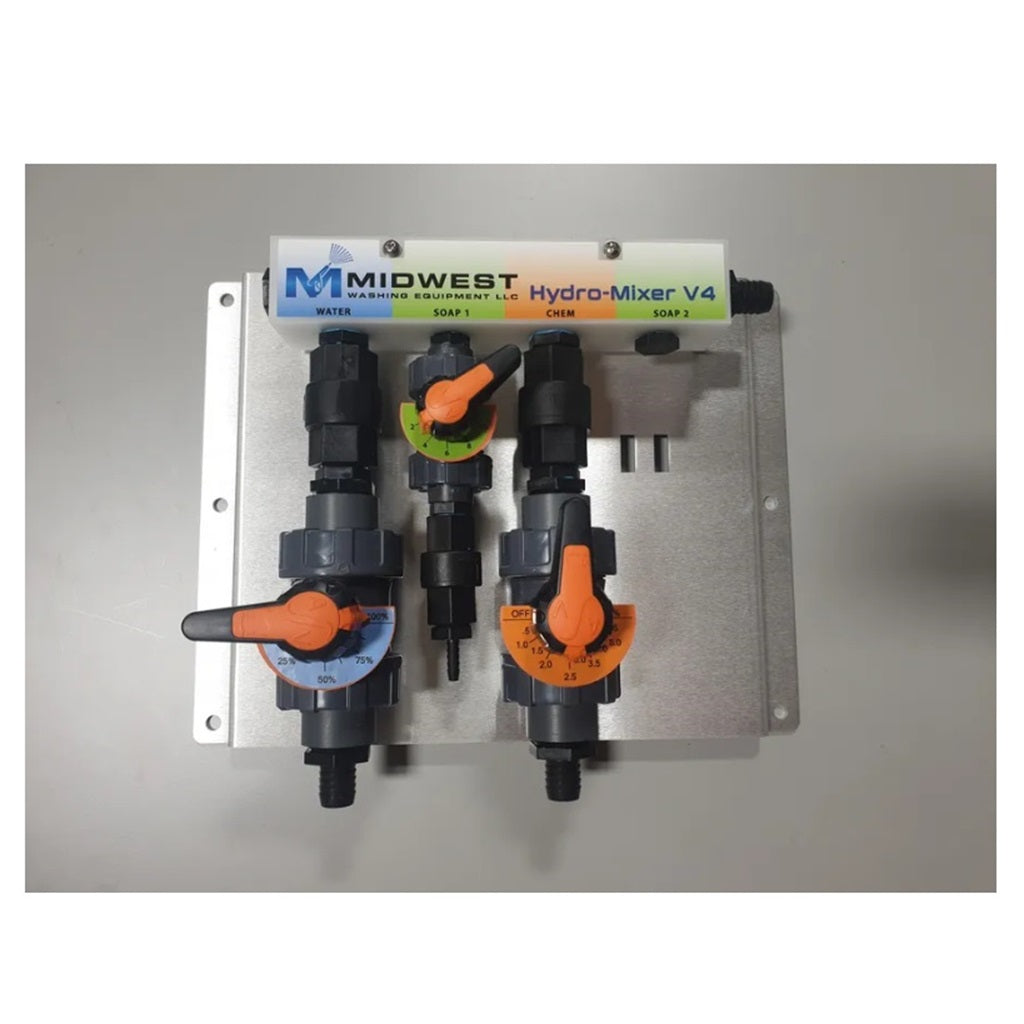

Hydro-Mixer HM-XL-P40 Proportioning System

Updated and Improved. The latest innovation in soft wash technology from MWE.

Built and optimized for the Comet P36/P40 with a 1/2" bypass return.

Can be used with other pump configurations (AR45*) and is compatible with compressor driven air pumps 10gpm and up. *May require replacing bypass barb.

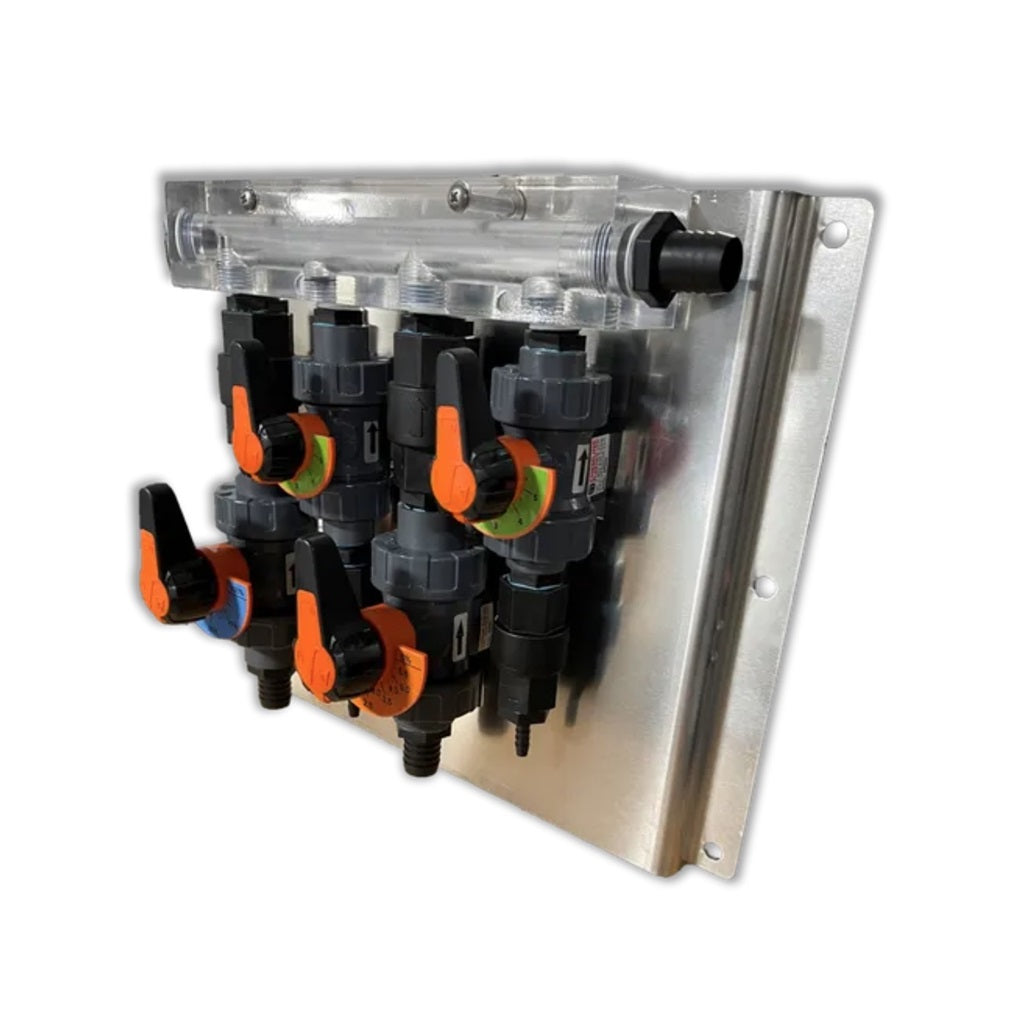

Transparent clearview model now available.

**Only use teflon tape with ClearView Manifolds**

Key Features:

• Solid one-piece polypropylene manifold
• 4 inlet ports and 2 outlet (bypass) ports
• Sturdy aluminum plate with mounting holes for easy installation.
• Standard model Includes two metering valves for water and bleach (SH), and one precision soap needle valve for surfactant.
• Bypass setup for gas pumps included. (5 to 10min max bypass time)
• Valve indicator for accurate and visual % mixing.
• Precision soap metering.

XL comes standard with high flow metering valves.

• QTY: x1 water metering valve
• QTY: x1 chem/SH metering valve

• QTY: x1 soap metering valve - Optional 2nd valve available

Standard connections are:

• 3/4" Water & Chem Barbs
• 1/4" Soap Barb
• 1/2" Bypass Barb

Options:

• Optional 2nd soap metering valve available.
  • Run 2 soap products simultaneously
  • Eliminate moving your soap line between tanks
  • Run a surfactant and degreaser or neutralizer/rinse aid.
• Optional aluminum storm guard.

Fully Assembled and Tested: Arrives fully assembled and tested for immediate use.

Warranty: 1-year warranty on the entire unit and a 5-year warranty on the polypropylene manifold.

Add-On Accessories:

• - Highly recommended for the longevity of the pump and system components.
• - Fits Hydro-Mixer Mounting Plates and Remote Modules
